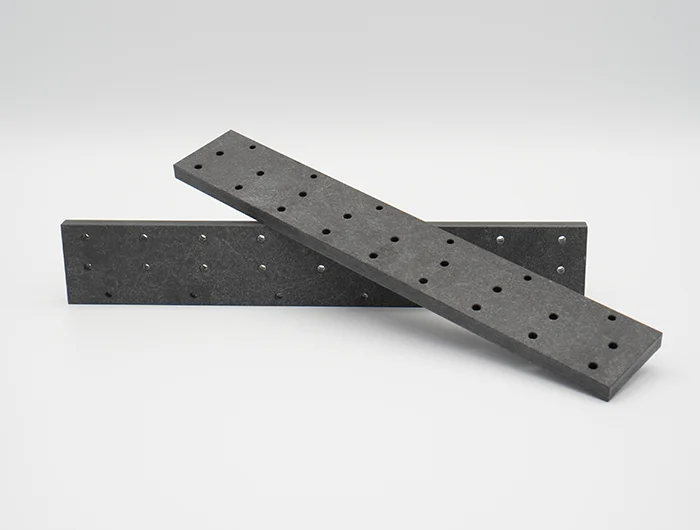

고온 고강도 단열판
Keeprecision 310BL
특성
- 01
높은 내열성 , 최고 사용온도 310℃
- 02
뛰어난 치수 안정성
- 03
표면저항 10-6~10-9ohm
용도
- PCB 등 정밀 전자부품 가공용 치공구
- 단열 부품
- 고온 치수 안정성을 요구하는 부품
규격
- 판재규격 1.2x2mtr, 1200x2400mm
- 두께 3~25mm (표준)
Technical Data
| Properties | Test Standard | Unit | Value |
|---|---|---|---|
| Density | DIN 53479 | g/cm3 | 1.9 |
| Flexural Strength at 23°C | ISO 178 | N/mm2 | 380 |
| Compressive Strength at 23°C | ISO 604 | N/mm2 | 360 |
| Coeff. of Thermal Expansion | DIN 53752 | 10-6 K-1 | 380 |
| Flexural Strength at 23°C | ISO 178 | N/mm2 | 11 |
| Thermal Conductivity | DIN 52612 | W/mK | 0.22 |
| Continous Use Temperature | - | °C | 310 |
| Maximum Use Temperature | - | °C | 350 |
| Water Absorption after 24 h at 23°C | DIN 53495 | % | <0.18 |
Thickness Tolerance
| Thickness Tolerance | |
|---|---|
| Dimension (mm) | Thickness Tolerance (mm) |
| 450*400 range | ±0.05mm |
| 1000*1000 range | ±0.1mm |
| 800*1000 range | ±0.01∼±0.03mm (particular precision needs grinding processing, which should be discussed according to the actual size) |
- 이상의 DATA는 평균적 품질의 물성 예시로 참고 자료로 활용되어야 하며, 사안별로 개별 사용자의 책임하에 검증과정을 거처 적용되어야 합니다.
- Sueco does not guarantee the accuracy or completeness of any information contained herein for unknow application. So these data should be used just as a reference.
