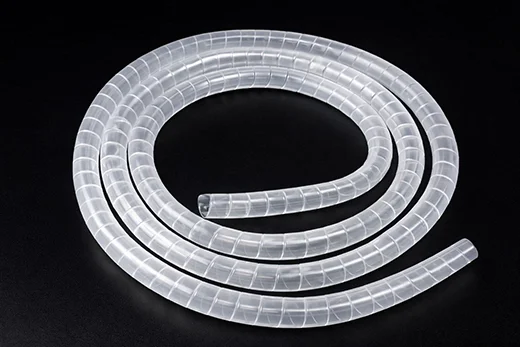

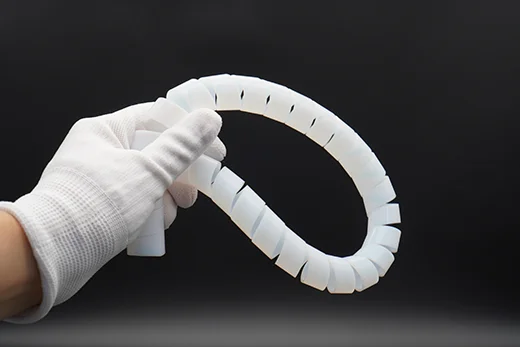

Fluoro Helical Spiral Tube
불소수지 스파이럴(헬리컬) 튜브
- 주요 소재 PFA, PTFE
- The helical spiral tube is used as protecting the wire, cable, pipe and rope from the corrosive chemicals in the clean room or other hazardous environment
특성
- 01
Excellent chemical UV resistance and dielectric strength
- 02
Easy to zip the mixed cable or wires to a clean shape
- 03
Easy to use in the problem area
- 04
Easy to see the inner cables
- 05
From very low to high temperature up to 250℃(PFA,PTFE)
- 06
Flexible and extendable
- 07
Flame resistance
용도
- Protecting the wires
- Bundling and wire harness
- Fiber optics protections
규격
- Materials : PTFE ,FEP, PFA, PVDF, ETFE and other fluoro materials and PEEK
- Color : natural and other color available on request
- Customizable pitch
Tube size
| Prouct number | ID | Wall thickness | Max bundling size | |||
|---|---|---|---|---|---|---|
| in. | mm | in. | mm | in. | mm | |
| 1/16 | 1.59 | 1/2 | 12.7 | |||
| 1/8 | 3.15 | 1 | 25.4 | |||
| 3/16 | 4.76 | 2 | 50.8 | |||
| SW-HB6x4.8 | 1/4 | 6.35 | 2-1/2 | 63.5 | ||
| 5/16 | 7.94 | 3 | 76.2 | |||
| 7/16 | 11.11 | 4 | 101.6 | |||
| 9/16 | 14.29 | 5 | 127 | |||
| 11/16 | 17.46 | 6 | 152.4 | |||
| 15/16 | 23.81 | 8 | 203.2 | |||
