첨단소재 전문 기업
섬유 복합재, 단열재, Aerogel, ePTFE, 정밀가공

Glass Coated fabric

코팅 유리섬유 직물

코팅 유리섬유 직물은 유리섬유 원단에 실리콘, PTFE, PU 등 기능성 수지를 코팅한 산업용 직물입니다. 우수한 내열성(–70℃~+500℃)과 절연성, 내화학성을 지녀 혹독한 환경에서도 안정적으로 사용됩니다. 용접 방염포, 단열 커버, 열 차단 커튼, 컨베이어 벨트 등 다양한 산업용 보호재로 활용됩니다, 코팅 종류에 따라 내유성·방수성·미끄럼 방지 등 맞춤 특성을 부여할 수 있습니다. 내열성과 내구성을 동시에 요구하는 설비 및 공정용 보호 소재로 널리 사용됩니다.

PRODUCT
LIST

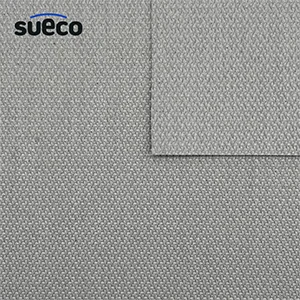

430SR

제품특징

  • 소재 E-glass
  • 전폭 1.52m
  • 두께 0.42T
Product Details
Attribute Value
Base Fabric E-glass
Coating Silicone
Color (Silver) Grey
Weave Style Satin
Max Temperature 250℃
Thickness 0.42mm ± 0.05
Weight 580g/sqm ± 30
Warp Strength >3,000N/5cm
Fill Strength >2,500N/5cm
Standard Roll Length 50m
Standard Width 1.52m
Key Features - excellent resistant to sun light
- Flame retardant
- Very flexible and easily sewn
PG040SSG(S)

제품특징

  • 소재 E-glass
  • 전폭 1.5m
  • 두께 0.4T
Product Details
Attribute Value
Base Fabric E-glass
Coating P.T.F.E (Polytetrafluoroethylene)
Color Front Grey / Back Brown
Weave Style Satin
Max Temperature 250℃
Thickness 0.4mm ± 0.02
Weight 610g/sqm ± 30
Tensile Strength >3,000N/5cm (Warp)
Tear Strength >100N (Warp)
Standard Roll Length 50m
Standard Width 1.5m
PG040SSG(D)

제품특징

  • 소재 E-glass
  • 전폭 1.5m
  • 두께 0.41T
Product Details
Attribute Value
Base Fabric E-glass
Coating P.T.F.E (Polytetrafluoroethylene)
Color Front Grey / Back Grey
Weave Style Satin
Max Temperature 250℃
Thickness 0.41mm ± 0.02
Weight 700g/sqm ± 30
Tensile Strength >4,000N/5cm (Warp)
Tear Strength >100N (Warp)
Standard Roll Length 50m
Standard Width 1.5m

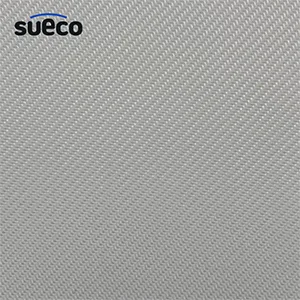

PG040SSW

제품특징

  • 소재 E-glass
  • 전폭 1.5m
  • 두께 0.35T
Product Details
Attribute Value
Base Fabric E-glass
Coating P.T.F.E (Polytetrafluoroethylene)
Color White
Weave Style Satin
Max Temperature 250℃
Thickness 0.35mm ± 0.02
Weight 560g/sqm ± 20
Tensile Strength >2,500N/5cm (Warp)
Tear Strength >50N (Warp)
Standard Roll Length 50m
Standard Width 1.5m

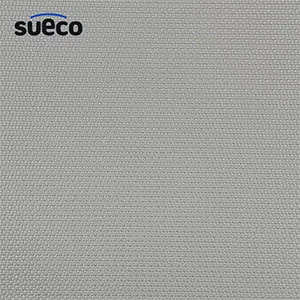

PG040TSW

제품특징

  • 소재 E-glass
  • 전폭 1.2m
  • 두께 0.34T
Product Details
Attribute Value
Base Fabric E-glass
Coating P.T.F.E (Polytetrafluoroethylene)
Color White
Weave Style Twill
Max Temperature 250℃
Thickness 0.34mm ± 0.02
Weight 530g/sqm ± 20
Tensile Strength >1,000N/5cm (Warp)
Tear Strength >25N (Warp)
Standard Roll Length 50m
Standard Width 1.2m

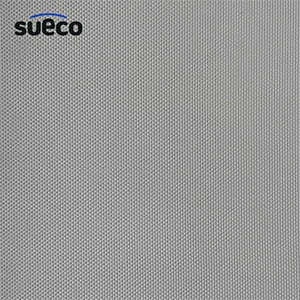

PG018PSW(E)

제품특징

  • 소재 E-glass
  • 전폭 1m/ 1.2m
  • 두께 0.18T
Product Details
Attribute Value
Base Fabric E-glass
Coating P.T.F.E (Polytetrafluoroethylene)
Color White
Weave Style Plain
Max Temperature 250℃
Thickness 0.18mm ± 0.02
Weight 275g/sqm ± 10
Tensile Strength >1,200N/5cm (Warp)
Tear Strength >40N (Warp)
Standard Roll Length 25m or 50m
Standard Width 1.0m or 1.2m
