Silica Fabric

실리카직물

실리카 직물은 95% 이상 SiO₂(이산화규소)로 구성된 초고온용 무기섬유 직물입니다 최대 1,000℃ 이상에서도 견딜 수 있는 뛰어난 내열성을 갖고 있습니다. 용접 스파크 차단포, 단열 커버, 열 차단 커튼, 보온재 등 고온 산업 현장에서 사용됩니다. 또한 열충격과 화학약품에 강해 금속가공, 제철, 유리·세라믹 공정 등에도 적합합니다. 고온 안정성과 단열 성능이 탁월한 프리미엄 내열 직물입니다.

PRODUCT
LIST

실리카 직물(생지) 0.3T Bake

제품특징

  • 소재 실리카 (Silica content)
  • 전폭 0.92m
  • 두께 0.3T
Product Details
Attribute Value
Base Fabric Silica Content >96%
Coating Non
Color White
Weave Style 8HS
Max Temperature 1,000℃
Thickness 0.3mm ± 0.1
Weight 300g/sqm ± 50
Warp Strength >500N/Inch
Fill Strength >400N/Inch
Standard Roll Length 50m
Standard Width 0.92m

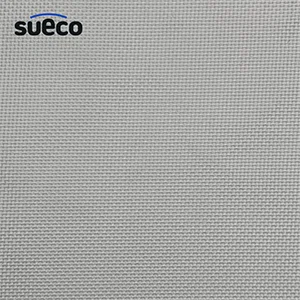

PS040PSW

제품특징

  • 소재 -
  • 소재 실리카 (Silica)
  • 전폭 1.15m
  • 두께 0.385T
Product Details
Attribute Value
Base Fabric Silica (SiO2 96%↑)
Coating P.T.F.E (Polytetrafluoroethylene)
Color White
Weave Style Plain
Max Temperature 1,000℃
Thickness 0.385mm ± 0.05
Weight 430g/sqm ± 20
Warp Strength >2,300N/5cm Warp
Fill Strength >80N Warp
Standard Roll Length 30m
Standard Width 1.15m

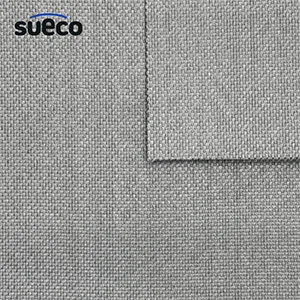

실리콘 코팅 실리카 직물 0.5T [SF-330SI]

제품특징

  • 소재 실리카 직물(Silica yarn)
  • 전폭 1.2m
  • 두께 0.5T
Product Details
Attribute Value
Base Fabric Silica Yarn (SiO₂ 96% / Al₂O₃ 4%)
Coating Silicon
Color Grey
Weave Style Plain
Thickness 0.5mm ± 0.05
Weight 500g/sqm ± 10%
Warp Strength 1,000 N/25mm
Fill Strength 500 N/25mm
Max temperature 1,000 ℃
Softening point temperature 1,250 ℃
Melting point temperature 1,700 ℃
잔염시간 5초 이내 방염성능기준[소방청고시제2021-7호
(2021.1.14],멕켈버너
잔진시간 20초 이내
탄화면적 40㎤ 이내
탄화길이 20㎝이내
Standard Roll Length 100m
Standard Width 1.2m

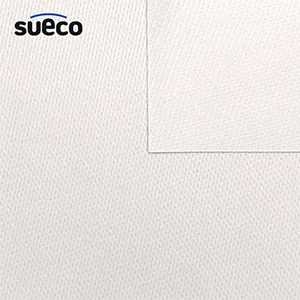

PU코팅 실리카 직물 0.7T [SU-2000]

제품특징

  • 소재 -
  • 소재 실리카 직물(Silica yarn)
  • 전폭 1.2m
  • 두께 0.7T
Product Details
Attribute Value
Base Fabric Silica Yarn (SiO₂ 96% / Al₂O₃ 4%)
Coating Flame Resistance Polyurethane
Color White
Weave Style Satin
Thickness 0.7mm ± 0.15
Weight 780g/sqm ± 10%
Warp Strength 1,600 N/25mm
Fill Strength 1,000 N/25mm
Max temperature 1,000 ℃
Softening point temperature 1,250 ℃
Melting point temperature 1,700 ℃
잔염시간 5초 이내 방염성능기준[소방청고시제2021-7호
(2021.1.14],멕켈버너
잔진시간 20초 이내
탄화면적 40㎤ 이내
탄화길이 20㎝이내
Standard Roll Length 100m
Standard Width 1.2m

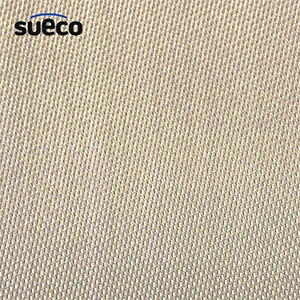

열처리 실리카 직물 0.8T [SH-600]

제품특징

  • 소재 -
  • 소재 실리카 직물(Silica yarn)
  • 전폭 0.92m
  • 두께 0.8T
Product Details
Attribute Value
Base Fabric Silica yarn (SiO₂ 95%)
Coating Vermiculite
Color Bright Gold
Weave Style Satin
Max Temperature 1,000℃
Thickness 0.8mm ± 0.05
Weight 600g/sqm ± 20
Warp Strength >1,200N/5cm
Fill Strength >1,000N/5cm
Standard Roll Length 50yd
Standard Width 0.92m

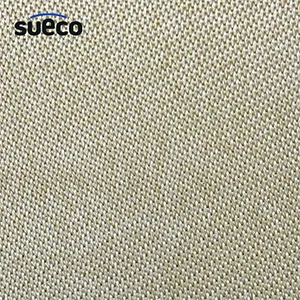

열처리 실리카 직물 1.3T [168CH]

제품특징

  • 소재 실리카 직물(Silica yarn)
  • 전폭 0.92m
  • 두께 1.3T
Product Details
Attribute Value
Base Fabric Silica yarn (SiO₂ 95%)
Coating Vermiculite
Color Bright Gold
Weave Style Satin
Max temperature 1,000℃
Thickness 1.3mm ± 0.05
Weight 1,200g/sqm ± 20
Warp Strength >1,500N/5cm
Fill Strength >1,200N/5cm
Standard Roll Length 25yd
Standard Width 0.92m
